 88 SERIES

 ADJUSTABLE DIAMETER & GROOVE GAGE


88-375C contacts

88-1000 disc contacts
 and 88-10 bench stand

Precise depth setting makes groove diameter inspection easier when the part face can be used as a datum surface.

Hardened & precision ground A-2 steel rest surface.

Full 1" travel or retraction for checking deep grooves.

Fine adjustment mechanism for rapid setting.

Indicator can be rotated 360 degrees for easy viewing.

Contact points adjustable to 2 1/2" depth.
Optional stand for use as a bench gage.

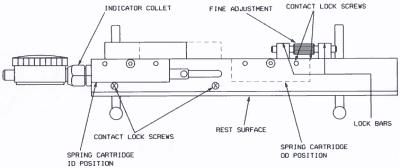

88 ASSEMBLY

Gage supplied with 88-375c contacts. Other contacts may be substituted at additional cost.

Gage weight - 38 oz.
Overall length with indicator - 12.75 in.

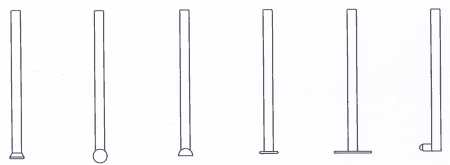

88 CONTACT POINT TABLE
 88-100   88-375C   88-1-375C  88-500   88-1000   88-448
Contact Point    Depth Range  I.D. Range O.D. Range Description
  88-100 .080 - 2.5 .760 - 7.97 0 - 7.22   HSS
  88-375C .050 - 2.5 .760 - 7.97 0 - 7.22    3/8" Grade 25 Carbide Ball
  88-1-375C .050 - 2.5 .760 - 7.97 0 - 7.22   3/8" Grade 25 1/2 Carbide Ball
  88-500 .025 - 2.5 1.02 - 8.10 0 - 7.10   .050 x .500 Hard Chromed Disc
  88-1000 .025 - 2.5 2.02 - 8.60  0 - 6.60   .050 x 1.00 Hard Chromed Disc
  88-448 .100 - 2.5 1.10 - 8.30 0 - 6.90   3/16 AE Ruby or Carbide with 4-48   Thread


 STORAGE CASE

No. 88-1 for Model 88
