Mueller Gages Company

1750 Series

DEEP INREACH GROOVE DIAMETER GAGES

Model 1765

20" inreach Approx. weight 2 lb. 10 oz.

Model 1760

16" inreach Approx. weight 2 lb. 6 oz.

Model 1755

12" inreach Approx. weight 2 lb. 2 oz.

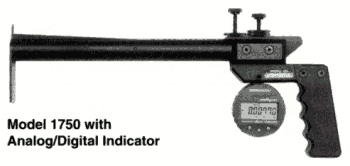

Model 1750

8" inreach Approx. weight 1 lb. 14 oz.

	Standard models available with 8", 12", 16" and 20" inreach for hard to reach groove and recess diameters
	1.400" to 6.400" inside diameter range with interchangeable lower measuring tips. Tips for larger diameters available. Model 1750 -8" inreach can be modified to enter 1" entry bore diameter.
	Full 5/8" retraction of upper measuring tip-will check groove recess diameters up to 5/8" larger than entry bore diameter. Greater retraction available for deeper grooves as optional extra.
	Modified measuring tips readily available for applications not covered by standard range.
	Two point contact standard. Three point contact available.
	Supplied with AGD group 1 .0005" dial indicator with 1/8" travel - .01mm dial indicator with 2.5 mm travel optional.
	Finished hardwood storage cases available for all models

HARDWOOD STORAGE CASES
	No. 1750-1 for model 1750
	No. 1755-1 for model 1755
	No. 1760-1 for model 1760
	No. 1765-1 for model 1765
Model 1760 illustrated in No. 1760-1 hardwood storage case.

Model Number	Inreach	Diameter Range	Approximate Weight
1750	8"	*1.400"-6.400"	1 lb. 14 oz.
1755	12"	*1.400"-6.400"	2 lb. 2 oz.
1760	16"	*1.400"-6.400"	2 lb. 6 oz.
1765	20"	*1.400"-6.400"	2 lb. 10 oz.
*See lower measuring tip selection chart

	INTERCHANGEABLE LOWER MEASURING TIP SELECTION CHART
Tip No.	"A" Diameter Range
	MIN. MAX.
1775-1	1.400" - 1.900"
1775-2	1.900" - 2.400"
1775-3	2.400" - 2.900"
1775-4	2.900" - 3.400"
1775-5	3.400" - 3.900"
1775-6	3.900" - 4.400"
1775-7	4.400" - 4.900"
1775-8	4.900" - 5.400"
1775-9	5.400" - 5.900"
1775-10	5.900" - 6.400"
If groove diameter & entry bore diameter are not covered by same tip number, please advise both dimensions and we will provide special tip at no extra charge.

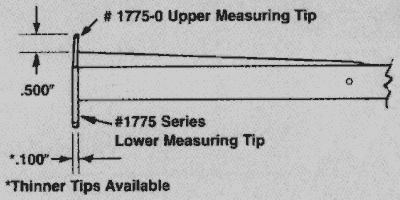

INTERCHANGEABLE LOWER MEASURING TIP SELECTION CHART

	Two point contact standard
	Three point contact available
	Tips are .100" thick

Can be supplied thinner for narrower grooves
Three point contact available.
Tips are .100" thick

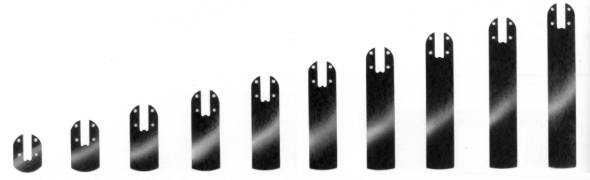

1775 Tip Set - Includes Lower Tips 1-10 and 1775-0 + .25 Longer Upper Tip


1775-1	1775-2	1775-3	1775-4	1775-5	1775-6	1775-7	1775-8	1775-9	1775-10

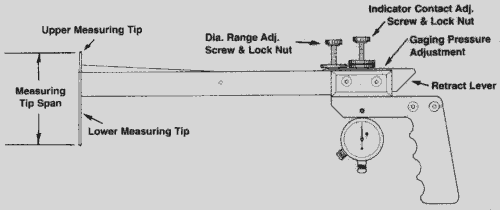

SPECIFICATIONS OF GROOVE DIAMETER GAGES

ORDERING INFORMATION

Gage supplied with 1775-0 upper measuring tip and one (1) only lower measuring tip selected from ten (10) stock sizes listed (1775-1 through 1775-10). For special applications supply entry bore diameter and groove diameter and we will supply special lower tip at no extra cost.

Dimensional Gages Since 1949

1750 Series
