GAGE PRODUCTS


179 SERIES

PARALLEL MOVEMENT GROOVE DIAMETER GAGE

    Fast, Accurate Checking of Internal Grooves & Recesses

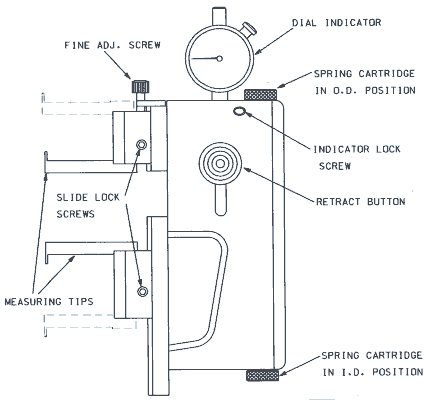

Model 179 with 180-0 Measuring Tips Model 179-40 long ref. rail, digital/analog indicator with 180-15 Measuring Tips
bullet

Precision Linear Guide movement

bullet

Full 1" travel (interaction) for deep grooves and recesses.

bullet

Measuring tips remain parallel throughout entire travel.

bullet

Large standard diameter range from .290 to 7.900" - larger range available with optional long lower reference bar.

bullet

Adjustable gaging pressure

bullet

Complete range of standard 2 point and 3 point contact measuring tips available from stock with inreach up to 4 1/2 ". Tips are hardened, precision ground & hard chrome plated for long wear life.

bullet

Special & modified standard measuring tips available for special applications.
Weight of gage rests on stationary lower measuring tip - reduces possibility of operator error.

bullet

Gage quickly & easily set with 1/4" travel fine adjustment.

bullet

Set with micrometer, gage blocks, ring gage or qualified part.

bullet

May be used with our 1400 series carbide ball measuring tips to check pitch diameters of gears, splines, ball races & dovetails.

bullet

Supplied with AGD Group 1 .0005" dial indicator. .0001" & metric indicators available.

bullet

Gage may be used with any AGD Group II style (2 1/4" dia.) Electronic digital indicator with SPC output.

bullet

Fitted storage case available for gage and accessories



STANDARD MEASURING TIPS
Tip No. A
Min-Max. Bore Dia. Range
B
Length of Meas. Tip
C
Width of Meas. Tip
D
Depth of Meas. Tip
Upper Lower
1503 1503 290-4.125 1 1/4  .050  .110
1504  1504  730-7.187  1 1/4 .040  .210
1504  *1504-3
3-point contact
730-7.187   1 1/4 .040  .210
180-0 180-0 1.050-7.375 1 1/2 .050  .210
180-5  180-5  1.050-7.375 2 1/2 .050  .210
180-10 180-10 1.150-7.500 3 1/2 .050  250
180-10 *180-30
3-point contact
1.150-7.500 3 1/2 .050  250
180-15 180-15 1.700-7.900 4 1/2  .080 .500
* 3 point contact measuring tips require cylindrical master.


The following measuring tips are available with special width ('C' dimensions) at no extra charge when specified on purchase order.
Measuring Tip No.   Standard Width Special Width
1503  .050  .022
1504  .040  .020

Approximate weight of gage with measuring tips is 28 oz.







OPTIONAL ACCESSORIES

bullet

182 storage case

bullet

179-40 long lower reference bar (will not fit standard 182 storage case).

bullet

179-65 adjustable tip stops

bullet

Series 179 - Page 2 (cont'd)



ORDERING INFORMATION
bullet

Model 179 gage - consists of gage body with AGD Group I .0005" dial indicator with rev counter. .0001" & metric dial indicators available.

bullet

Measuring tips ordered separately. See chart for tip selection.

bullet

179-50 gage set includes 179 gage with .0005" dial indicator, 1 set 1503 measuring tips & choice of 1 set 180-0 or 180-5 or 180-10 measuring tips & 182 storage case.
