Check ID's from .8" to 8.5" and OD's from .4" to 8.)" with 2 models. |
|
|
Fully adjustable gaging depth from 1/32" to 5/16" |
|
|
Five types standard interchangeable contact points available. Special contacts available too. |
|
|

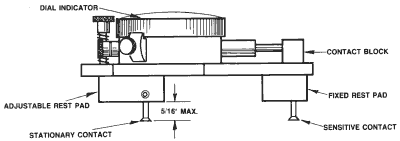

Raised 3 point location rest pads stand gage 1/2" off part to clear hubs, shafts, etc. |
|
|
Two point contact |
|
|
Supplied with AGD Group 2 .0005" dial indicator with rev. counter.
Not available with .0001 indicator |
|
|
For checking internal grooves, models 2002 and 2004 have .500" retraction
Gaging direction changed in seconds. |
|
|
All contact and wear areas hardened and ground |
|
|
Easily set with gage blocks, ring gage, or qualified part. |
|
|
Fitted storage cases available. |
|
|
Gaging contacts can be rotated easily as they wear, greatly extending their useful life. |
