LIGHTWEIGHT ADJUSTABLE SHALLOW DIAMETER GAGES

560 with 318-250c contacts
560 with digital/analog indicator
For a quick & easy checking of shallow inside & outside diameters, center distances of holes, pitch diameters of gears & related dimensions.
bullet

Checks diameters by comparing part dimensions to gage blocks. Actual part dimension shown on dial indicator.
bullet

Gage may be used with any AGD Group II style (2 1/4" dia.) Electronic digital indicator with SPC output.
bullet

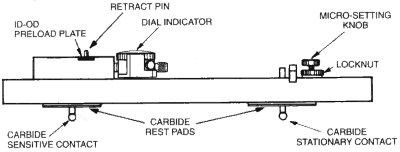

Gage rests on face of part for fast & dependable 2 point measurement directly across diameter.
bullet

Lightweight - Alloy Steel Airframe tubing gage body.
bullet

4 1/2" to 60" Diameter Range - 6 Models - Larger sizes available.
bullet

Frictionless Reed Transfer Mechanism provides precise repeatability.
bullet

Fast acting Rack & Pinion line adjustment for rapid setting.
bullet

Positive mechanism instantly changes gaging direction & preloads indicator.
bullet

Easily set with gage blocks or qualified part.
bullet

0 to 1: adjustable gaging depth.
bullet

Carbide gaging contacts.
bullet

Carbide gage rest surface.
bullet

Gaging contacts may be rotated as they wear, greatly extending their useful life.
bullet

Hardwood storage cases available for all models.


SPECIFICATIONS FOR #580 GAGES
Model # I.D.- O.D. Range Length Approx. Weight
560 4 1/2" to 12" 18" 2 lb
561 12" to 18" 24" 2 lb. 2 oz.
562 18" to 24" 30" 2 lb. 4 oz.
563 24" to 36" 41.5" 3 lb
564 36" to 48" 53.5" 4 lb.
565 48" to 60" 65.5" 4 lb. 8 oz.
bullet

Supplied with AGD Group 1 .0005" dial indicator with revolution counter. Gage travel is .040".
bullet

.0001", .01mm or .002mm dial indicators available.
bullet

Fully adjustable gaging depth from 0 to 1".
bullet

With #319-1-.250C half ball carbide contacts diameters may be checked very close to the face of a counter bore.
bullet

Fitted hardwood storage cases available for all models.


Gages supplied with 318-.250C carbide ball contacts and AGD group 1 .0005" dial indicator unless otherwise requested






     HARDWOOD STORAGE CASES


Model 560 with No. 560-1 Hardwood Storage Case


560-1 For Model 560
561-1 For Model 561
562-1 For Model 562
563-1 For Model 563
564-1 For Model 564
565-1 For Model 565



590 SERIES INSIDE & OUTSIDE DIAMETER REFERENCE MASTERS

The 590 Series Reference masters are offered in 6 sizes to accommodate our No. 560 series lightweight Adjustable Shallow Diameter Gages. They feature a depth range from 0 to 1: and a 1/2" rack & pinion fine adjustment for fast and easy setting. The range blocks are hardened and precision ground and the Reference Master body is made from precision ground an stress relieved alloy steel tubing. This reference master may be used with both the No. 321-1000 1" diameter and 318-250C, 319-1-.250C 1/4" diameter contact points supplied for the No. 560 series.

Reference masters are set by the gage after it has been set to the required dimension by gage blocks, etc. The reference master can then be placed in the production area to periodically verify the gage setting.


No. 560 Gage with 590 Reference Master
No 590 SERIES REFERENCE MASTERS
MODEL NO. INSIDE & OUTSIDE DIAMETER RANGE DEPTH RANGE
590 41/2" - 12" 0-1"
591 12"-18" 0-1"
592 18"-24" 0-1"
593 24"-36" 0-1"
594 36"-48" 0-1"
595 48"-60" 0-1"
